Pleated Cartridge
Filter |
| |

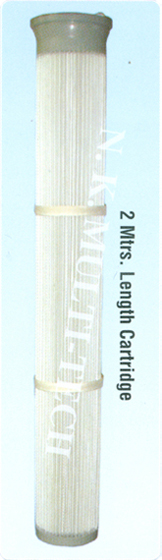

Polyurethane |
|
 |
 |
| |
|

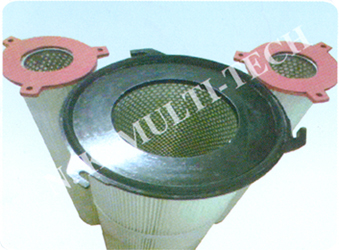

| 3 Lock Cartridge |

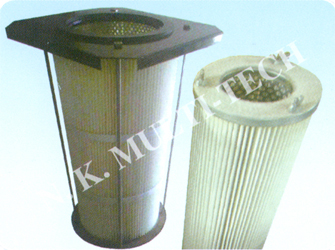

4 Stud With Sqr. Flange
Type Cartridge |
| |
|
 |
 |
| |
|

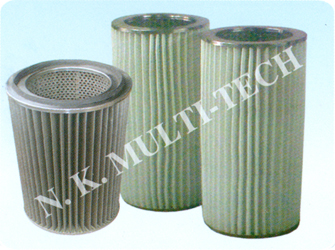

| Din Type Cartridge |

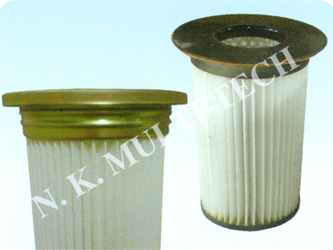

Double Groove & Flange |
|
|
| |
| |
| Type |
|
Flange Molded / Double Groove / 3
Lock / Conical |
| MOC |
|
GI / SS |
| Media |
|
Nonwoven, Polyester, Cellulose |
| Finish |
|
PTFE / Antistatic / Oil & Water Repellant, Fire
Retardant Finish |
| Sizes |
|
Standard / Customized |
| Application |
|
AHU, Pharma, Shot-blasting, Powder Coating ,
Metal Processing |
| Feature |
|
Replaces conventional Dust Collection Bags (3 to
4 times more filtration area) High efficiency. Low pressure
drop, Energy saving, Space saving, Convenient. |
|
| |
| Standard Size |
| |
|
Dia (mm) |
PLT - DP |
NOP |
Length (mm) |
|
500 |
600 |
1000 |
1500 |
2000 |
|
Filtration Area (Sq. mtr.) |
| 150 |
16 / 20 |
57 |
1.15 |
1.50 |
2.30 |
3.5 |
4.50 |
| 225 |
48 / 28 |
80 |
3.85 |
4.60 |
7.70 |
*6.70 |
|
| 325 |
48 / 28 |
110 |
5.30 |
6.30 |
10.50 |
16 |
*9 |
|
| |
| Technical Data |
| |
|
Filter Media |
Spun Bond Polyester |
Cellulose |
Spun Bond Polyester with PTFE |
| Inlet Dust Load mg/m3 |
5 |
8 |
15 |
| Outlet Dust Load mg/m3 |
50 |
50 |
30 |
| Operating Temperature |
120C |
800C |
1300C |
| Dust Collection Efficiency |
99.5% |
98% |
99.99% |
| Filter Fineness (micron) |
5 |
5 |
2 |
|
| |
| |
 |
|
